MT120215系列 過孔式導電滑環
2018-10-08 19:51 蘇州默孚龍
通孔直徑120mm,外徑:215mm
MT120215是標準系列過孔滑環，,過孔直徑120mm(適用任何<=120mm)，外徑為215mm精密導電滑環。支持信號(2A), 10A, 倍率*10A,電壓440VAC/VDC.
相比較同類產品有著旋轉精度高，性能更穩定，壽命更長。其采用接觸材料采用貴金屬+超硬鍍金處理，力矩小，運轉穩定，壽命長,電阻波動小,接觸電阻小,保證優良的傳輸性能。
典型應用包括自動化設備、工作轉臺、攝像機云臺、機器人等.
| 產品等級選型表 | |||
| 產品等級代號 | 最高轉速 | 工作壽命 | 接觸材料 |
| VC | 150RPM | 1000萬轉 | 貴金屬 |
| VD | 250RPM | 2000萬轉 | 鍍金-鍍金 |
| 技術規格參數 | ||||
| 機械技術指標 | 電氣技術指標 | |||
| 參數 | 數值 | 參數 | 數值 | |
| 工作壽命 | 參考產品選型等級 | 功率 | 信號 | |
| 額定轉速 | 參考產品選型等級 | 額定電壓 | 0~690VAC/VDC | 0~440VAC/VDC |
| 工作溫度 | -30℃~80℃ | 絕緣電阻 | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC |
| 工作濕度 | 0~85% RH | 導線規格 | AWG16#Teflon | AWG22#Teflon |
| 接觸材料 | 參考產品選型等級 | 導線長度 | 標準長度300mm（可據要求調整） | |
| 殼體材料 | 鋁合金 | 絕緣強度 | 1000VAC@50Hz，60s | |
| 扭矩 | 0.1N.m；+0.03N.m/6路 | 動態電阻變化值 | <0.01Ω | |
| 防護等級 | IP51 | |||

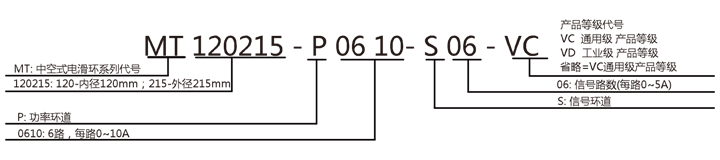

選型表
| MT120215系列-過孔式滑環選型表 | |||||||
| 型號 | 10A | 信號或5A | 長度L(mm) | 型號 | 10A | 信號或5A | 長度L(mm) |
| MT120215-S02 | 0 | 2 | 68 | MT120215-S36 | 0 | 36 | 243 |
| MT120215-P0210 | 2 | 0 | 68 | MT120215-P0610-S30 | 6 | 30 | 243 |
| MT120215-S03 | 0 | 3 | 73 | MT120215-P1210-S24 | 12 | 24 | 243 |
| MT120215-P0310 | 3 | 0 | 73 | MT120215-P3610 | 36 | 0 | 243 |
| MT120215-S06 | 0 | 6 | 88 | MT120215-S42 | 0 | 42 | 273 |
| MT120215-P0210-S04 | 2 | 4 | 88 | MT120215-P0610-S36 | 6 | 36 | 273 |
| MT120215-P0410-S02 | 4 | 2 | 88 | MT120215-P1210-S30 | 12 | 30 | 273 |
| MT120215-P0610 | 6 | 0 | 88 | MT120215-S48 | 0 | 48 | 303 |
| MT120215-S12 | 0 | 12 | 118 | MT120215-P0610-S42 | 6 | 42 | 303 |
| MT120215-P0210-S10 | 2 | 10 | 118 | MT120215-P0910-S39 | 9 | 39 | 303 |
| MT120215-P0310-S09 | 3 | 9 | 118 | MT120215-P1210-S36 | 12 | 36 | 303 |
| MT120215-P0610-S06 | 6 | 6 | 118 | MT120215-P1810-S30 | 18 | 30 | 303 |
| MT120215-P0810-S04 | 8 | 4 | 118 | MT120215-P2410-S24 | 24 | 24 | 303 |
| MT120215-P1010-S02 | 10 | 2 | 118 | MT120215-S60 | 0 | 60 | 363 |
| MT120215-P1210 | 12 | 0 | 118 | MT120215-P0610-S54 | 6 | 54 | 363 |
| MT120215-S18 | 0 | 18 | 148 | MT120215-P0910-S51 | 9 | 51 | 363 |
| MT120215-P0210-S16 | 2 | 16 | 148 | MT120215-P1210-S48 | 12 | 48 | 363 |
| MT120215-P0410-S14 | 4 | 14 | 148 | MT120215-S72 | 0 | 72 | 428 |
| MT120215-P0610-S12 | 6 | 12 | 148 | MT120215-P0610-S66 | 6 | 66 | 428 |
| MT120215-P0810-S10 | 8 | 10 | 148 | MT120215-P1210-S60 | 12 | 60 | 428 |
| MT120215-P1010-S08 | 10 | 8 | 148 | MT120215-P2410-S48 | 24 | 48 | 428 |
| MT120215-P1210-S06 | 12 | 6 | 148 | MT120215-P3610-S36 | 36 | 36 | 428 |
| MT120215-P1410-S04 | 14 | 4 | 148 | MT120215-S84 | 0 | 84 | 488 |
| MT120215-P1610-S02 | 16 | 2 | 148 | MT120215-P1210-S72 | 12 | 72 | 488 |
| MT120215-S24 | 0 | 24 | 178 | MT120215-P2410-S60 | 24 | 60 | 488 |
| MT120215-P0410-S20 | 4 | 20 | 178 | MT120215-P3610-S48 | 36 | 48 | 488 |
| MT120215-P0610-S18 | 6 | 18 | 178 | MT120215-S96 | 0 | 96 | 548 |
| MT120215-P1210-S12 | 12 | 12 | 178 | MT120215-P1210-S84 | 12 | 84 | 548 |
| MT120215-P1810-S06 | 18 | 6 | 178 | MT120215-P2410-S72 | 24 | 72 | 548 |
| MT120215-P2410 | 24 | 0 | 178 | MT120215-P3610-S60 | 36 | 60 | 548 |
| MT120215-S30 | 0 | 30 | 208 | MT120215-P4210-S54 | 42 | 54 | 548 |
| MT120215-P0610-S24 | 6 | 24 | 208 | MT120215-S108 | 0 | 108 | 613 |
| MT120215-P1210-S18 | 12 | 18 | 208 | MT120215-P1210-S96 | 12 | 96 | 613 |
| MT120215-P1810-S12 | 18 | 12 | 208 | MT120215-P2410-S84 | 24 | 84 | 613 |
| MT120215-P2410-S06 | 24 | 6 | 208 | MT120215-P3610-S72 | 36 | 72 | 613 |
| MT120215-P3010 | 30 | 0 | 208 | MT120215-P4810-S60 | 48 | 60 | 613 |
注：N個10A 電流環并起來可作為1路N*10A電流環使用；比如: 2環10A 并起來做作為 1路20A 使用。
10A和信號(5A) 可以任意組合，詳細請咨詢客服。可在標準產品上進行非標定制，請咨詢客服。

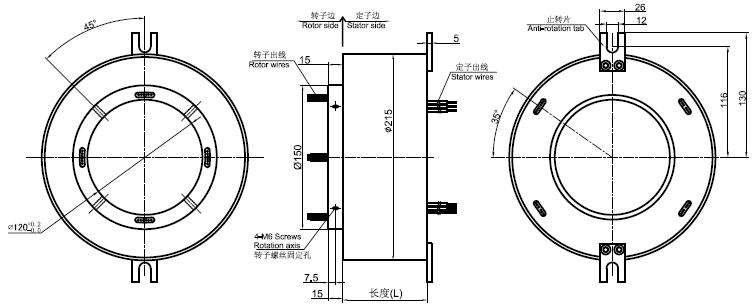

標準圖紙
