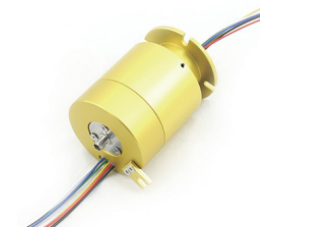

MHF108系列
2018-10-06 15:22 蘇州默孚龍
| 技術規格參數 | ||||
| 高頻部分技術指標 | 機械技術指標 | |||
| 參數 | 數值 | 參數 | 數值 | |
| 頻率 | 0~30GHz | 工作壽命 | 500萬轉 | |
| 額定功率 | 20W | 額定轉速 | 150RPM | |
| 駐波比VSWR | <1.3 | 工作溫度(℃) | -30℃~80℃ | |
| 插入損耗 | 0.3db | 工作濕度 | 0~85% RH | |
| 駐波比波動 | <0.05 | 接觸材料 | 金-金 | |
| 插入損耗波動 | 0.05db | 殼體材料 | 鋁合金 | |
| 接頭類型 | SMA | 扭矩 | 0.1N.m；+0.03N.m/6路 | |
| 特性阻抗 | 50Ω | 防護等級 | IP51 | |
| 電氣技術指標 | ||||
| 參數 | 數值 | |||
| 功率 | 信號 | |||
| 額定電壓 | 0~440VAC/VDC | 0~240VAC/VDC | ||
| 絕緣電阻 | ≥1000MΩ/500VDC | ≥1000MΩ/500VDC | ||
| 導線規格 | AWG16#Teflon | AWG22#Teflon | ||
| 導線長度 | 標準長度300mm（可據要求調整） | |||
| 絕緣強度 | 500VAC@50Hz，60s | |||
| 動態電阻變化值 | <0.01Ω | |||

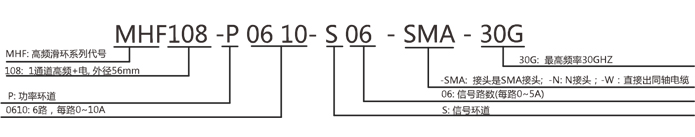

選型表
| MHF108-單通道高頻+電組合滑環選型表 | |||||
| 型號 | 高頻通道 | 頻率 | 10A | 信號或5A | 長度L(mm) |
| MHF108-S06 | 1 | DC-30GHz | 0 | 6 | 38 |
| MHF108-P0610 | 1 | DC-30GHz | 6 | 0 | 38 |
| MHF108-S12 | 1 | DC-30GHz | 0 | 12 | 54.8 |
| MHF108-P1210 | 1 | DC-30GHz | 12 | 0 | 54.8 |
| MHF108-P0610-S06 | 1 | DC-30GHz | 6 | 6 | 54.8 |
| MHF108-P0410-S08 | 1 | DC-30GHz | 2 | 8 | 49.2 |
| MHF108-P0210-S10 | 1 | DC-30GHz | 2 | 10 | 54.8 |
| MHF108-S18 | 1 | DC-30GHz | 0 | 18 | 71.6 |
| MHF108-P1810 | 1 | DC-30GHz | 18 | 0 | 71.6 |
| MHF108-P0610-S12 | 1 | DC-30GHz | 6 | 12 | 71.6 |
| MHF108-P1210-S06 | 1 | DC-30GHz | 12 | 6 | 71.6 |
| MHF108-P0610-S18 | 1 | DC-30GHz | 6 | 18 | 88.4 |
| MHF108-P1210-S12 | 1 | DC-30GHz | 12 | 12 | 88.4 |
| MHF108-P1810-S06 | 1 | DC-30GHz | 18 | 6 | 88.4 |
| MHF108-S24 | 1 | DC-30GHz | 0 | 24 | 88.4 |
| MHF108-P2410 | 1 | DC-30GHz | 24 | 0 | 88.4 |
| MHF108-S30 | 1 | DC-30GHz | 0 | 30 | 105.2 |
| MHF108-S36 | 1 | DC-30GHz | 0 | 36 | 122 |
| MHF108-S42 | 1 | DC-30GHz | 0 | 42 | 138.8 |

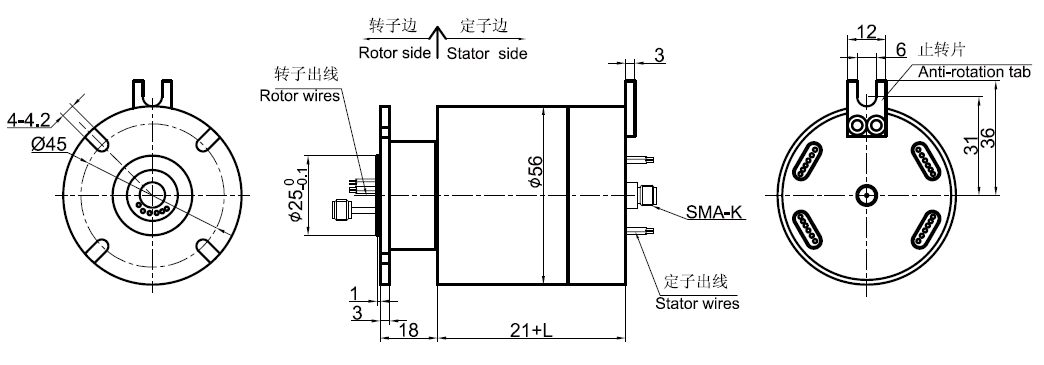

標準圖紙
